Insulated Glass Panels,Double Glazing Insulated Glass, Insulating glass with CE & ISO

Products Description:

Insulated glazing (IG), more commonly known as double glazing (or double-pane, and increasingly triple glazing/pane) are double or triple glass window panes separated by an air or other gas filled space to reduce heat transfer across a part of the building envelope.

Insulated Glass Units (IGUs) are manufactured with glass in range of thickness from 3 mm to 10 mm or more in special applications. Laminated or tempered glass may also be used as part of the construction. Most units are manufactured with the same thickness of glass used on both panes^{[citation needed]} but special applications such as acoustic attenuation or security may require wide ranges of thicknesses to be incorporated in the same unit.

To reduce shear effects on the sealed unit (a major cause of premature failure), manufacturers use a rule of thumb that permits a difference of 1 mm between the thickness of the panes of glass used in the unit and still maintain the warranty for the unit.^{[citation needed]} For example, a unit may be ordered with a 4 mm pane on the exterior and a 3 mm pane on the interior. These variations are allowed for architectural and cost reasons. Other combinations can be specified and produced but the manufacturer may reserve the right to limit the term of the warranty or refuse to warranty the unit altogether.

For ease of description the surfaces of a double paned unit are named according to the following convention: Surface #1 (facing outside), Surface #2 (inside of outside pane), Surface #3 (outside of inside pane) and Surface #4 (inside surface of inside pane). Applying the corresponding nomenclature for triple paned units results in surfaces #1 through #6.

Specification:

Features:

1. Thermal performance
2. Energy-saving building materials
3. Sound insulation
4. No dewing in low temperatures
5. Create aesthetic sense to buildings

Applications:

Restaurant,Hospitals/Schools,Airports,Freezers/Refrigerators,Air conditioned Buildings and other places needing

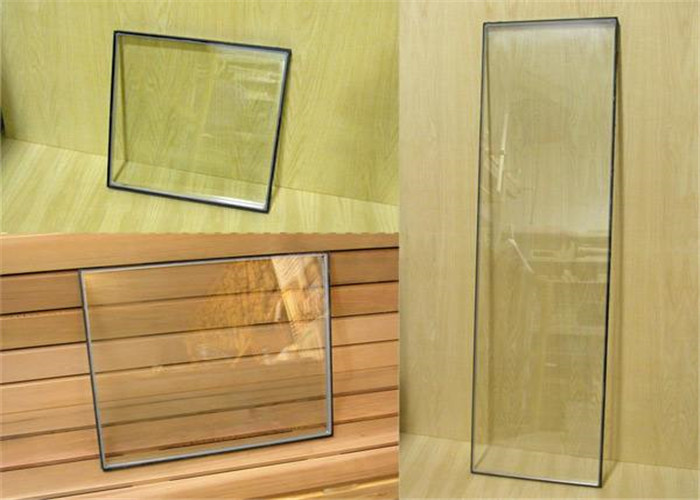

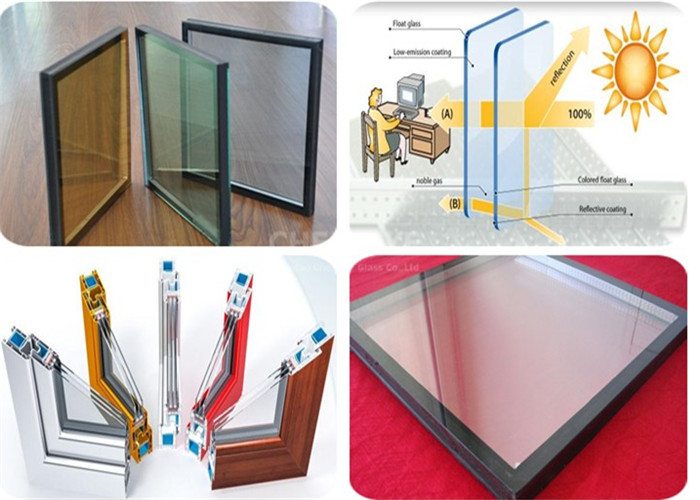

Products pictures:

Packaging&Shipping:

  QINHUANGDAO YIWO GLASS is mainly engaged in float glass and glass deep processing production. Our company is located in the beautiful seashore tourist city---Qinhuangdao, which is one of the first coastal open cities and the important foreign trade ports in the north part of china. Our city is in the center of the Bohai economic circle zone, is the joint of northeast and North China economic zone, It has the world's largest energy output port -- Qinhuangdao port. The geographical position of Qinhuangdao is superior; the traffic is very convenient.

  Our company always adheres to market - oriented, pays attention to technological progress and innovation, and has introduced the glass deep-processing technology and equipment at home and abroad. We are specialized in producing tempered glass, insulating glass, laminated glass, reflective glass, frosted glass, paint glass, patterned glass, mirror glass, photovoltaic glass. Taking the market as the guidance, relying on technology quality, our company has been providing professional service for construction industry, furniture industry and other decoration industries since its establishment. In line with the market as the core, the reform as driving force, our factory actively adjusts the internal structure and changes the marketing strategy, adapts to market demand. Based on consolidating the market, our company carries out all-round position and standards process management and system management to provide reliable protection for the quality of the products. Our company develops itself by perfect management system, rich producing experience and strong technical strength as well as the progress of science and technology. We have gained the praise and support from old and new friends and customers of all sectors of community.

  Our company has gained the praise and long-term cooperation with our customers by good quality, exact delivering time, and the favorable price. Our production has been sold to domestic big cities and many foreign countries, selling to South Korea, Japan, and India, Russia and many other surrounding Eurasian countries, also exporting to North America and Africa countries. Welcome domestic and foreign businessmen come to discuss business with us for high-quality, high standards, preferential products, excellent service.
