Brand Name : | YIWO |
Model Number : | 3.2MM |
Price : | negotiation |
Supply Ability : | 30000 Square Meters/Day |
Delivery Time : | 7-15 Days |
Solar glass is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
Specification:
3.2mm clear float glass photovoltaic cell solar panel low iron tempered glass ultra-white low iron glass clear solar panel glass
Solar Glass Property | Thickness(mm) | 3.2mm 4mm |
Max Dimension(mm) | 2250*3500mm(annealed),1830*2600mm(tempered) | |
Color | Clear and ultra clear | |
Design | Matt/matt, low iron float glass | |
Glass Type | Solar patterned glass (tempered or non-tempered) Solar float glass (tempered or non-tempered) | |
Application | Solar panel Solar water heater | |
Surface Condition | Structured in same way on both sides acc. To technical requirement | |
Solar transmittance> | ≥91.7%, without AR coating ≥94.7%, with AR coating | |
Iron Content | 100ppm | |
Poisson's ratio | 0.2 | |
Density | 2.5g/cc | |
Young's Modulus | 73GPa | |
Tensile strength | 90N/mm2 | |
Compressive Strength | 700-900N/mm2 | |
Expansion coefficient | 9.03 x 10-6/ | |
Softening point(C) | 720 | |
Annealing point(C) | 550 | |
Strain point(C) | 500 |

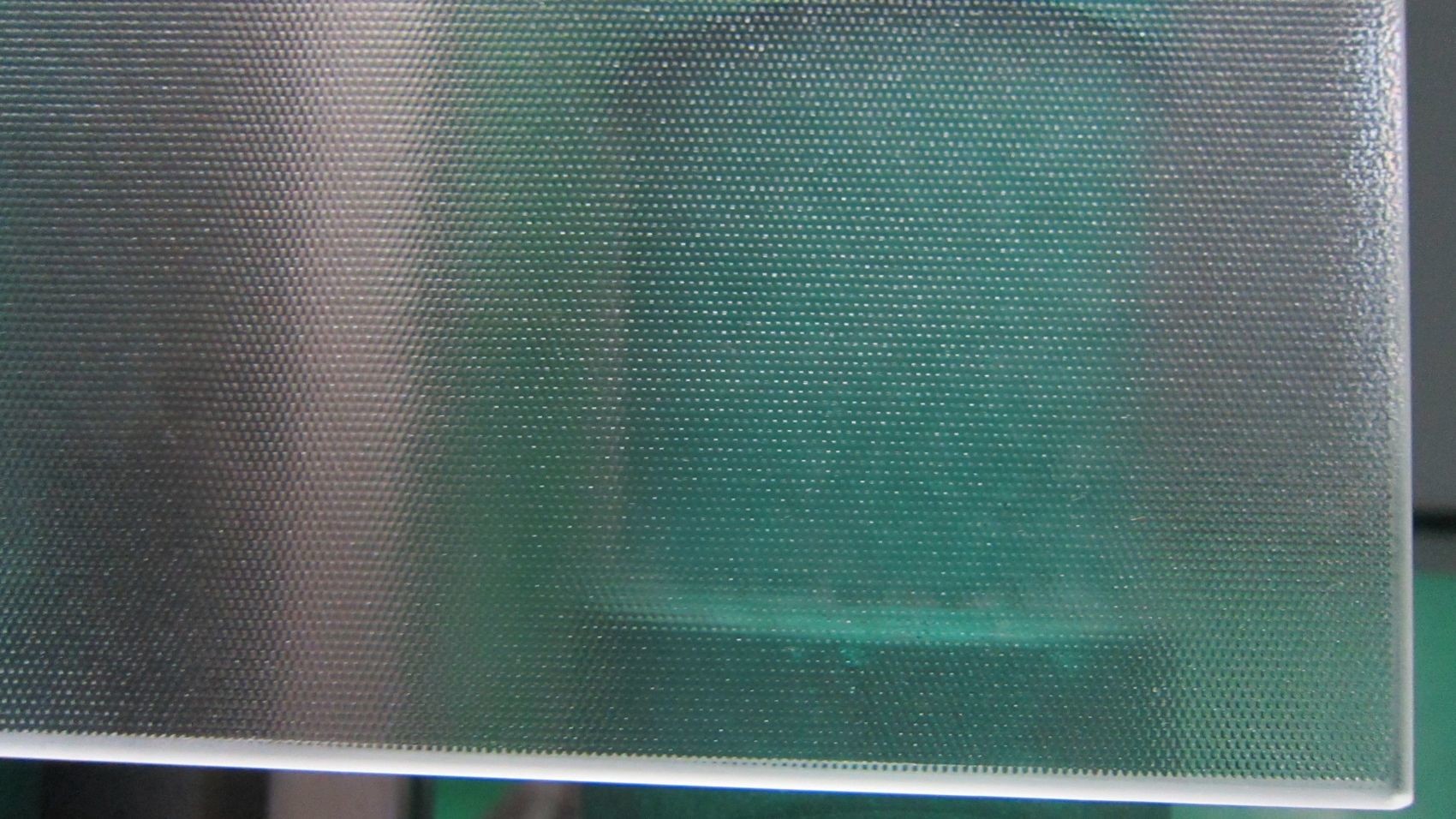

Products Show:
Packaging
![]() |
